Owing to the superior quality of our products, we are widely appreciated as a manufacturer and supplier of Direct Drive Hydro Extractor. The entire range is duly checked at our quality control unit to make sure that clients are availed with only defect free products. Made using superior quality stainless steel, it is provided several unique features that make it ideal to use in textile processing industry. Owing to our extensive transportation system, we assure transit of Direct Drive Hydro Extractor within the time bound manner at clients' doorsteps.
Features:e
Other details:

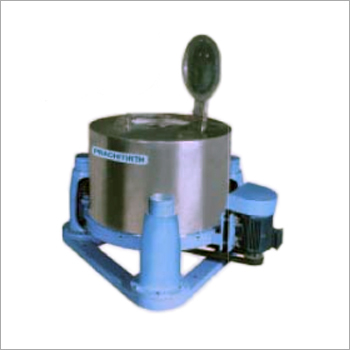

Hydro Extractor Machine Direct motor drive, self-balancing. This machine has good excellent performance like low noise and vibration free due to its unique Suspension system. It takes
less time due to its high speed rotation having good results with Automatic Electromagnetic DC
Injection Brake System having capacity of 15 to 50 kg. Per charge with auto-timed, Top loading, Vibration less, Inner basket and outer drum stainless steel with specially designed foundation frame for grouting the machine, having the facility of dismantling the inner basket without dismantling the outer body, Complete with specially designed Electric motor and control panel operates on 415V, 3 Phase, 50Hz AC supply.
Technical Specifications
Model | PMC 15/DD | PMC 255/DD | PMC 35/DD | PMC 50/DD |
Capacity kegs | 15 kgs | 25 kgs | 35 kgs | 50 kgs |
Cylinder size mm | 500x300 | 600x350 | 700x350 | 915x400 |
Cylinder size inch | 20x12 | 24x14 | 28x14 | 36x16 |
Extractor motor | 2 HP | 3 HP | 5 HP | 7.5 HP |
Cylinder speed | 960 rpm | 960 rpm | 960 rpm | 900 rpm |
Drain Dia | 50mm | 50mm | 75mm | 100mm |
App weight | 250 kg | 350 kg | 450 kg | 750 kg |
Overall dimension (WxDxH) | 760x1010x1100 | 1000x950x1100 | 1150x950x1200 | 1300x1100x1250 |
![]() |
