Industrial Washing Machine

Industrial Washing Machine

Product Details:

  • Drum Diameter 1400 Millimeter (mm)
  • Drum Capacity 3500 Milliliter (mL)
  • Heating Electrical/Steam
  • Voltage 440 Watt (w)
  • Capacity 500kg Kg/hr
  • Material Stainless Steel
  • Control System Micro PLC
  • Click to View more
X

Industrial Washing Machine Price And Quantity

  • nan INR
  • 1 Unit

Industrial Washing Machine Product Specifications

  • 3500 Milliliter (mL)
  • Micro PLC
  • Electrical/Steam
  • 440 Watt (w)
  • 500kg Kg/hr
  • Stainless Steel
  • 1400 Millimeter (mm)
  • Semi Automatic
  • Yes

Industrial Washing Machine Trade Information

  • Cash in Advance (CID) Cash Advance (CA)
  • 30 Unit Per Month
  • 1 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Export Packing
  • Middle East Africa South America Asia
  • All India

Product Description

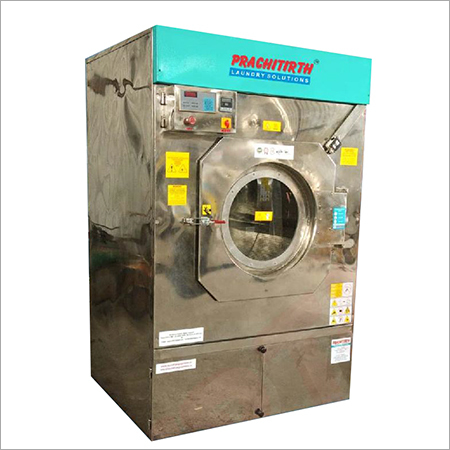

 Industrial Washing Machine

We are identified in the national market as as a promising manufacturer and supplier of Industrial Washing Machine. The entire body is made using non-corrosive and robust material that ensures its durability. Suitable for cotton, woolen, denim and knitted garments, our products are widely used for washing, milling and dyeing application. Made available in standard specifications, Industrial Washing Machine can also be customized as per the demands of clients.


Features:

  • Safe to use
  • Longer functional life
  • Optimum performance
  • Power efficient

Other details:

  • Bath Mat Dyeing
  • For all technical washing
  • Pigment Dyeing of knitted garments
  • All laundry jobs

Standard Features

Side loading washing machines is suitable for washing/milling of garments, cotton & woolen sweaters. Denim/enzyme wash, bath mats dyeing and dyeing of knitted garments. Inner and outer drum body is made with full stainless steel.

Side plate is made in SGIN C.S and it is forming with anticorrosive material, it is 100% corrosion proof(Swiss made). A special type of kristal dimple made on the net of inner drum, which will not allow any chemicals there and because of that the used to create similar and accurate pressure in the drum. The cylinder of inner drum are made in parts, so at the time of any accident of breakage, can be replaced with that part only. Each and every part of the model can be replaced separately because they are standard.

Fully automatic electronic panel with induvasul cycle digital timer auto-reverse and forward drive with digital temperature controller and auto stop water level indicator through pilot lamp.

Safety feature the machine stops automatically while opening the door through limit switch. All modles are available in 3 phases or 1 phase as per order.

We can also make new design machine as per your order and requirement.

Unique design give maximum O/P.

Technical Specifications

Model

Capacity kgs

Basket size mm/inch

Drive motor

Main door opening

Electric load

Steam connection consumption

Water connection consumption App.

Overall dimensions
wxdxh

Approx. Wt

PMC 14/MD

14 kg

600x600
24x24

1.0 HP

450x350

4.0 Kw

0.5 bsp
15 kg/hr

1.0 bsp 45 lts/fill

1500x675x1220

250 kg

PMC 18/MD

18 kg

600x914
24x36

1.0 HP

450x350

6.0 Kw

0.5 bsp
15 kg/hr

1.0 bsp 45 lts/fill

1800x675x1220

275 kg

Prachitirth Heavy duty side loading washing machine

PMC22/HD

22kg

750x914
30x36

1.5 HP

500x475

6.0 kw

0.5 BSP
15 kg/hr

1.0 bsp 50 lts/fill

1800x1800x1300

300 kg

PMC27/HD

27kg

750x1050
30x42

2.0 HP

600x475

9.0 kw

0.5 BSP
15 kg/hr

1.0 bsp 50 lts/fill

1950x800x1300

375 kg

Prachitirth Extra heavy duty side loading washing machine

PMC50 Ex

50 kg

900x1200
36x48

3.0 HP

600x600

20 kw

1.0 bsp
40 kg/hr

100 lts/fill, 1,0 bsp

2200x1250x1600

800 kg

PMC75 Ex

75 kg

900x1550
36x64

5.0 HP

1200x600

26 kw

1.0 bsp
70 kg/hr

200 lts/fill, 1,5 bsp

3500x1500x1600

1300 kg

PMC-SP2/100

100kg

1200x1500
48x60
5.0 HP
1x20 ratio

750x500

36.0 kw

1.0 bsp
80 kg/hr
4.0 inch

2,0 bsp 300 lts/fill

2300x1300x1350

1800 kg

PMC-SP2/200

200kg

1200x3000
48x120
7.5 HP
1x20 ratio

750x500

2nos


1.0 bsp
160 kg/hr
6.0 inch

2,0 bsp 600 lts/fill

4100x1300x1350

2900 kg

PMC-SP2/400

400kg

1350x3800
54x152
7.5 HP
1x20 ratio

750x500

2nos


1.0 bsp
325 kg/hr
6.0 inch

2,0 bsp 800 lts/fill

6000x1800x1650

3700 kg
