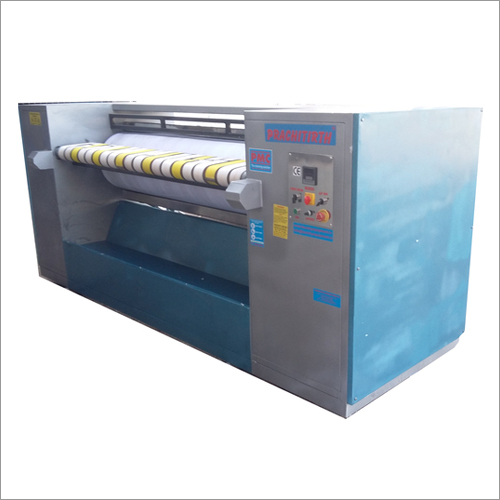

Industrial Flatwork Ironer

Industrial Flatwork Ironer
Industrial Flatwork Ironer
Product Code : 05
Product Description

Striving to strengthen our client base, we are relentlessly indulged in manufacturing and supplying Industrial Flatwork Ironer. Suitable for all types of fabrics, these are greatly used in laundries for drying and ironing. To ensure safe working of the offered machine, it is provided with hand safety guard and emergency stop buttons. We offer Industrial Flatwork Ironer in different specifications that can be availed by clients as per their requirements.

Features:

  • Variable speed drive
  • Offers quality finish of clothes
  • Longer service life

Additional information:

  • The PRACHITIRTH flat work ironer is used to dry and iron all flat articles such as bed sheet, pillow covers, table cloth, napkins etc. directly after the extraction process to produce a quality finish.
  • The feeding and heating belts are completely imported quality. These belts do not absorb moisture and prevent the transfer of any marks to the articles being processed.
  • Heat is transferred to the articles being processed via a heated cylinder manufactured out of complete Boiler Grade (for steam heated machines).
  • The unique design of the cylinder enables the transfer of heat with a high pressure on the articles thereby creating a higher efficiency while can Summing minimal energy.
  • Heating of the cylinder is via steam or electricity.
  • Very low power and steam consumption and a compact front feed, front return design ensure very minimal space consumption.
  • A powerful blower ensures maximum removal of the moist air created within the machine.
  • The electrical panel is equipped with a digital temperature indicator and digital speed indicator. A hand safety guard through the length of the cylinder and emergency stop buttons are provided to ensure a safe working. A variable speed drive for different types of fabrics and reversing of the cylinder are standard.
  • Safety finger bar across full width of ironer
  • Safety and warning labels
  • Padding and ribbons of temperature resistant
  • Steam or Electrical heating
  • Variable speed drive with soft-start
  • Electronic temperature control with digital read out
  • Jog forward/reverse
  • Front or rear return
  • Pneumatically controlled compression Chest with automatic pressure adjustment
  • High polished heated chest
  • Electrical and mechanical protection devices
  • Full exhaust canopy with external blower
  • Electrical and mechanical protection devices
  • Three phase electrical service
  • Highly polished heated cylinder
  • Lift of interlocked end panels for easy maintenance
  • Emergency stop buttons around the machine

Technical Specifications

Model

Number of Rolls

Roller size mm inch

Motor HP

Sunction Motor HP

Steam connection and consumption

Ironing speed

Air outlet (inches)

Electric heating (kw)

Dimensions (WxDxH)

Net weight (kgs)

PMC/FW6

1

150x1200
6x48

0.5

0.5

15mm BSP
10 kg H/R

1-9

3

6 to 9

1900x750x1000

400

PMC/FW10

1

250x1800
10x72

0.1

0.5

15mm BSP
10 kg H/R

1-9

3

10 to 14

2500x1010x1200

550

PMC/FW18M

1

450x1800
18x72

2

1

15mm BSP
20 kg H/R

1-12

4

16 to 20

2800x1100x1200

900

PMC/FW20

1

500x2100
20x84

3

1

20mm BSP
30 kg H/R

3-12

5

22 to 28

3100x1100x1250

1100

PMC/FW24

1

600x3000
24x120

3.5

1.5

20mm BSP
60 kg H/R

3-12

5

30 to 36

3300x1100x1400

1400

PMC/FW24 ex

1

600x3000
24x120

5

2

38mm BSP
100 kg H/R

3-12

5

NA

3300x1700x1400

2400

PMC/FW36

1

600x3000
24x120

5

2

38mm BSP
130 kg H/R

3-13.5

6

NA

4600x2100x1750

6200

PMC/FW36 ex

2

850x3300

7.5

3

38mm BSP
24 kg H/R

3-13.5

6

NA

4600x2900x1800

6900
